Visualizations

A list of all available visualizations in Shellviz

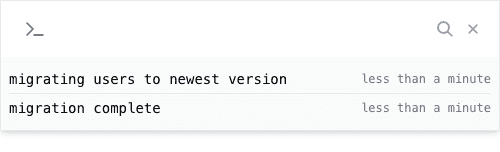

Log

from shellviz import log

Example:

log('migrating users to newest version')
log('migration complete')

Log

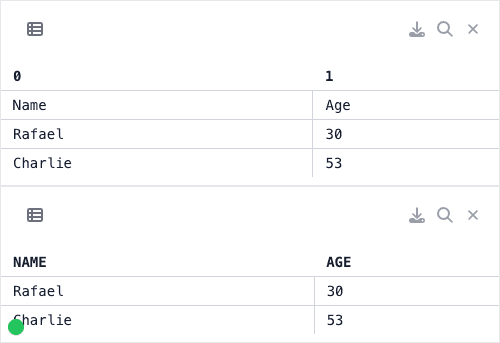

Table

from shellviz import table

Example:

table([['Name', 'Age'], ['Rafael', 30], ['Charlie', 53]])
table([{'name': 'Rafael', 'age': 30}, {'name': 'Charlie', 'age': 53}])

Table

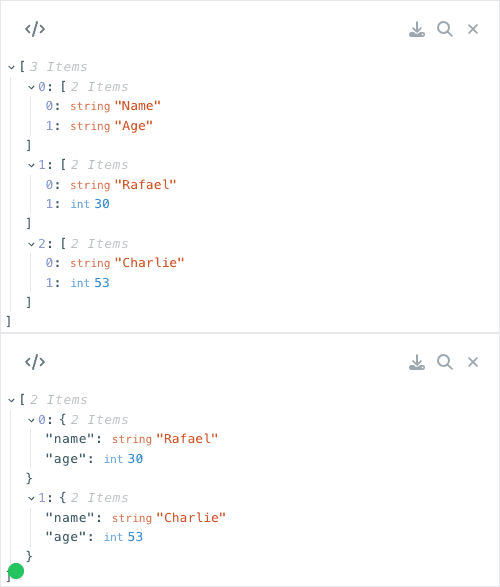

JSON

from shellviz import json

Example:

json([['Name', 'Age'], ['Rafael', 30], ['Charlie', 53]])
json([{'name': 'Rafael', 'age': 30}, {'name': 'Charlie', 'age': 53}])

JSON

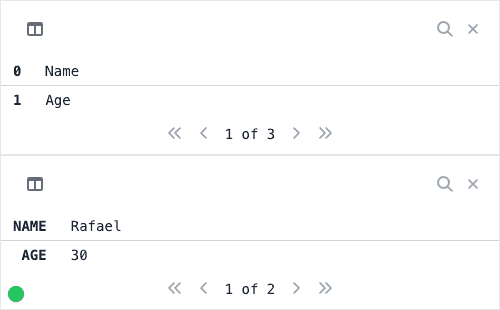

Card

from shellviz import card

Example:

card([['Name', 'Age'], ['Rafael', 30], ['Charlie', 53]])
card([{'name': 'Rafael', 'age': 30}, {'name': 'Charlie', 'age': 53}])

Card

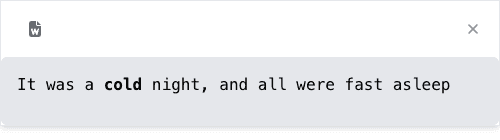

Markdown

from shellviz import markdown

Example:

markdown("It was a **cold** night, and all were fast asleep")

Markdown

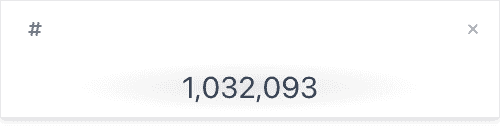

Number

from shellviz import number

Example:

number(1032093)

Number

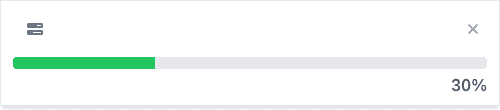

Progress

from shellviz import progress

Example:

progress(0.3)

Progress

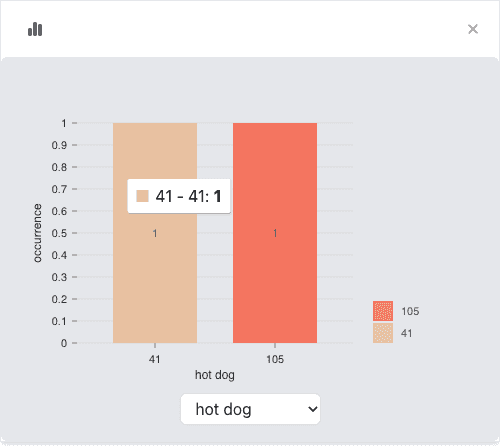

Bar

from shellviz import bar

Example:

bar([{
    "country": "AD",
    "hot dog": 105,
    "burger": 129,
    "sandwich": 37,
    "kebab": 119,
    "fries": 53,
    "donut": 69,
},
{
    "country": "AE",
    "hot dog": 41,
    "burger": 14,
    "sandwich": 181,
    "kebab": 166,
    "fries": 36,
    "donut": 105,
}])

Bar

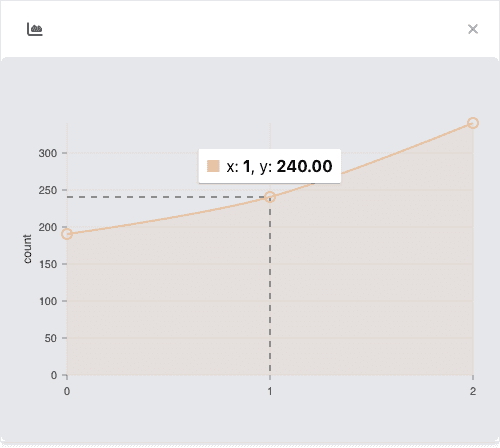

Area

from shellviz import area

Example:

area([190,240,340])

Pie

Pie

from shellviz import pie

Example:

pie([
    {"id": "java", "value": 204},
    {"id": "hack", "value": 23},
    {"id": "make", "value": 537},
    {"id": "go", "value": 295},
    {"id": "python", "value": 177},
])

Pie

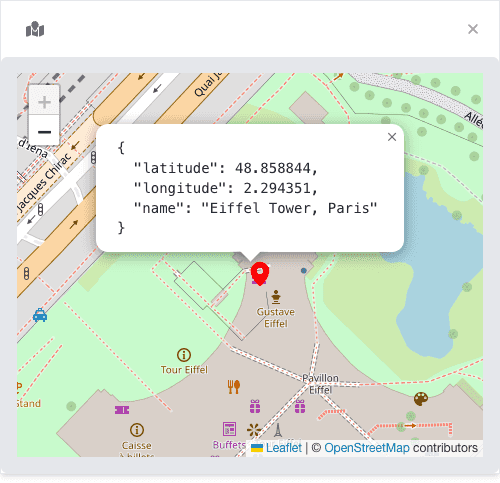

Location

from shellviz import location

Example:

location({
    "latitude": 48.858844,
    "longitude": 2.294351,
    "name": "Eiffel Tower, Paris"
  })

Location

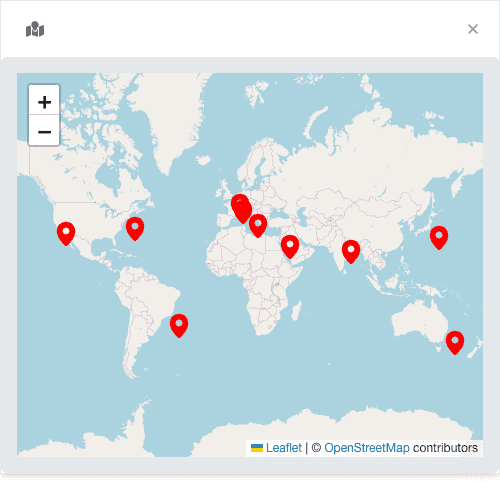

location([
  {
    "latitude": 48.858844,
    "longitude": 2.294351,
    "name": "Eiffel Tower, Paris"
  },
  {
    "latitude": 40.689247,
    "longitude": -74.044502,
    "name": "Statue of Liberty, New York"
  },
  {
    "latitude": 27.175144,
    "longitude": 78.042142,
    "name": "Taj Mahal, India"
  },
  {
    "latitude": -33.856784,
    "longitude": 151.215297,
    "name": "Sydney Opera House, Australia"
  },
  {
    "latitude": 35.689487,
    "longitude": 139.691711,
    "name": "Tokyo Tower, Japan"
  },
  {
    "latitude": 51.500729,
    "longitude": -0.124625,
    "name": "Big Ben, London"
  },
  {
    "latitude": 41.902784,
    "longitude": 12.496366,
    "name": "Colosseum, Rome"
  },
  {
    "latitude": 37.819929,
    "longitude": -122.478255,
    "name": "Golden Gate Bridge, San Francisco"
  },
  {
    "latitude": -22.951916,
    "longitude": -43.210487,
    "name": "Christ the Redeemer, Rio de Janeiro"
  },
  {
    "latitude": 30.328611,
    "longitude": 35.441944,
    "name": "Petra, Jordan"
  }
])

Location

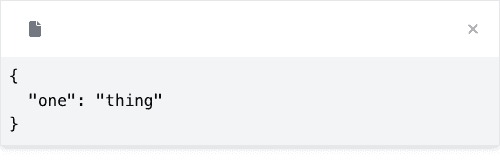

Raw

from shellviz import raw

Example:

raw({'one': 'thing'})

Raw
